Refrigerator/Freezer Worktables
|
Now NSF-7 & NSF-2 Certified!
Maintains Critical Holding Temperatures from 33°- 41°F
|
|
|
-
NSF-7 performance tested and passed by NSF
-
NSF-2 construction approved
-
Heavy-gauge 304 stainless steel exterior and
interior
-
Internal corner radius 1/2" for ease of
cleaning
-
Energy-saving 2" insulation (freezer 3"
insulation)
-
Heavy-duty chrome positive latch handles and
lift-off hinges
-
Removable door gasket for ease of maintenance
-
6" adjustable stainless steel legs
-
Adjustable epoxy-coated wire shelving
-
Condensate evaporator
-
Self-contained system with temperature control
and defrost timer
-
HP-62 refrigerant
-
Exhaust fan mounted in apron of unit to
increase compressor efficiency
-
Exterior face-mounted thermometer
-
Access door to compressor area mounted on
lift-off hinges
|
-
Integral backlash
-
Swivel casters (locking and non-locking)
-
Additional shelves
-
Cutting board (poly or richlite)
-
Interior light
-
Door locks
-
Interior tray racks
-
8' electrical cord and plug
-
Remote refrigeration
-
Customized options for special requirements
|
|
|
Refrigerator Specifications-RS Series
| Model |
Length |
BTUs |
Capacity
(Cu.Ft.) |
AMPs |
HP |
# of Doors |
| RS-12 |
144" |
4,263 |
48 |
28 |
1/2 |
4 |
| RS-11 |
132" |
3,879 |
43 |
27 |
1/2 |
4 |
| RS-10 |
120" |
3,461 |
39 |
27 |
1/2 |
3 |
| RS-9 |
108" |
3,042 |
34 |
21 |
1/3 |
3 |
| RS-8 |
96" |
2,624 |
29 |
21 |
1/3 |
2 |
| RS-7 |
84" |
2,206 |
25 |
21 |
1/4 |
2 |
| RS-6 |
72" |
1,787 |
20 |
21 |
1/4 |
2 |
| RS-5 |
60" |
1,369 |
15 |
22 |
1/4 |
1 |
| RS-4 |
48" |
950 |
11 |
17 |
1/4 |
1 |

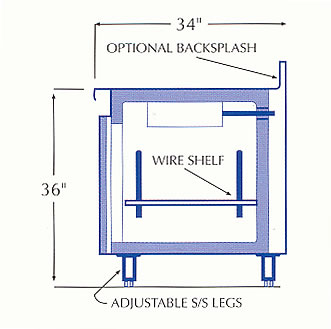

All electric - 115/120/1/160 Working heights: 36"
(w/backsplash 41") Depth:34"
|
|
|
Freezer Specifications-RSF Series
| Model |
Length |
BTUs |
Capacity
(Cu.Ft.) |
AMPs |
HP |
# of Doors |
| RSF-12 |
144" |
4,494 |
39 |
33* |
3/4 |
4 |
| RSF-11 |
132" |
4,040 |
35 |
33* |
3/4 |
4 |
| RSF-10 |
120" |
3,585 |
31 |
33* |
3/4 |
3 |
| RSF-9 |
108" |
3,129 |
27 |
30* |
3/4 |
3 |
| RSF-8 |
96" |
2,560 |
22 |
31 |
1/2 |
2 |
| RSF-7 |
84" |
2,332 |
20 |
31 |
1/2 |
2 |
| RSF-6 |
72" |
1,850 |
16 |
29 |
1/2 |
2 |
| RSF-5 |
60" |
1,421 |
12 |
25 |
1/3 |
1 |
| RSF-4 |
48" |
900 |
8 |
21 |
1/3 |
1 |
All electric - 115/120/1/160 -except where noted * 230/160 required
Working heights: 36" (w/backsplash 41") Depth:34"
|
|
|
