Service Sinks

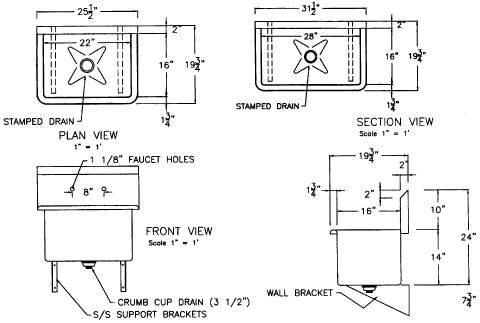

| Model No. | Bowl ID | O.A. |
| WSS-2015 | 20"x15"x14" | 23 1/2" x 18 3/4" |
| WSS-2216 | 22"x16"x14" | 25 1/2"x 19 3/4" |
| WSS-2816 | 28"x16"x14" | 31 1/2"x 19 3/4" |
Performance Specifications
A multipurpose sink fabricated in 16 gauge 304 type stainless steel. Wall mounted with cantilevered and flush mount wall brackets to provide maximum support. The sanitary design includes 1 3/4” rolled rim, 3/4” interior cove corners for easy cleaning and maintenance.
Mechanical Specifications
• Standard 3 1/2” crumb cup drain with basket strainer. 1 1/2” NPS connection
• 10” high integral backsplash with 2” return to the wall at 45 degree angle
• Faucet holes drilled through the backsplash, 8” on center
• Cantilevered and flush mount wall brackets for installation
• Heavy-duty 16 gauge 304 series stainless steel material
• Fully welded, seamless, polished fabrication
Features
• NSF approved, listed and labeled
• Sanitary design
• Engineered for use in cleaning, food prep and medical environments
• 14 gauge 304 type stainless steel fabrication available
• Units available with integral drainboards
• Complete line of faucets and valves available
• Custom configurations available
