Drop-In Sinks

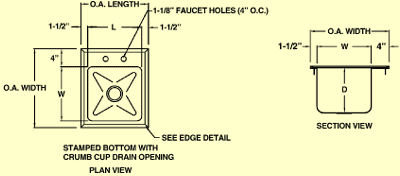

One Compartment Drop-in Sink with No Drainboards
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
|
| D-1-1212-4.5 | 12" x 12" x 4 1/2" |
15 x 17 1/2" |
16" x 16" x 4 1/2" |
19" x 21 1/2" |
||
| D-1-1212-7.5 | 12 “ x 12" x 7 1/2" | 15" x 17 1/2" | D-1-1616-7.5 | 16" x 16" x 7 1/2" | 19" x 21 1/2" | |
| D-1-1212-10 | 12" x 12" x 10" | 15" x 17 1/2" | D-1-1616-10 | 16" x 16" x 10" | 19" x 21 1/2" | |
| D-1-1216-4.5 | 12" x 16" x 4 1/2" | 15" x 21 1/2" | D-1-1916.4.5 | 19" x 16" x 4 1/2" | 22" x 21 1/2" | |
| D-1-1216-7.5 | 12" x 16" x 7 1/2" | 15" x 21 1/2" | D-1-1916-7.5 | 19" x 16" x 7 1/2" | 22" x 21 1/2" | |
| D-1-1216-10 | 12" x 16" x 10" | 15" x 21 1/2" | D-1-1916-10 | 19" x 16" x 10" | 22 “ x 21 1/2" | |
| D-1-1416-4.5 | 14" x 16" x 4 1/2" | 17" x 21 1/2" | D-1-2216-4.5 | 22" x 16" x 4 1/2" | 25" x 21 1/2" | |
| D-1-1416-7.5 | 14" x 16" x 7 1/2" | 17" x 21 1/2" | D-1-2216-7.5 | 22" x 16" x 7 1/2" | 25" x 21 1/2" | |
| D-1-1416-10 | 14" x 16" x 10" | 17" x 21 1/2" | D-1-2216-10 | 22" x 16" x 10" | 25" x 21 1/2" | |
| D-1-1814-4.5 | 18" x 14" x 4 1/2" | 21" x 19 1/2" | D-1-2816-4.5 | 28" x 16" x 4 1/2" | 31" x 21 1/2" | |
| D-1-1814-7.5 | 18" x 14" x 7 1/2" | 21" x 19 1/2" | D-1-2816-7.5 | 28" x 16" x 7 1/2" | 31" x 21 1/2" | |
| D-1-1814-10 | 18" x 14" x 10" | 21" x 19 1/2" | D1-2816-10 | 28" x 16" x 10" | 31" x 21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainers 1 1/2" IPS
• Fully welded, seamless and polished to a #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options

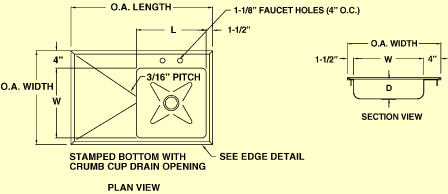

One Compartment Drop-in Sink with One Drainboard
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
|
16" x 16" x 4 1/2" |
32 1/2" x 21 1/2" |
22" x 16" x 4 1/2" |
38 1/2" x 21 1/2" |
|||
| DWD-1-1616-7.5-15 R OR L | 16" x 16" x 7 1/2" | 32 1/2" x 21 1/2" | DWD-1-2216-7.5-15 R OR L | 22" x 16" x 7 1/2" | 38 1/2" x 21 1/2" | |
| DWD-1-1616-10-15 R OR L | 16" x 16" x 10" | 32 1/2" x 21 1/2" | DWD-1-2216-10-15 R OR L | 22" x 16" x 10" | 38 1/2" x 21 1/2" | |
| DWD-1-1616-4.5-20 R OR L | 16" x 16" x 4 1/2" | 37 1/2" x 21 1/2" | DWD-1-2216-4.5-20 R OR L | 22" x 16" x 4 1/2" | 43 1/2" x 21 1/2" | |
| DWD-1-1616-7.5-20 R OR L | 16" x 16" x 7 1/2" | 37 1/2" x 21 1/2" | DWD-1-2216-7.5-20 R OR L | 22" x 16" x 7 1/2" | 43 1/2" x 21 1/2" | |
| DWD-1-1616-10-20 R OR L | 16" x 16" x 10" | 37 1/2" x 21 1/2" | DWD-1-2216-10-20 R OR L | 22" x 16" x 10" | 43 1/2" x 21 1/2" | |
| DWD-1-1916-4.5-15 R OR L | 19" x 16" x 4 1/2" | 35 1/2" x 21 1/2" | DWD-1-2816-4.5-15 R OR L | 28" x 16" x 4 1/2" | 44 1/2" x 21 1/2" | |
| DWD-1-1916-7.5-15 R OR L | 19" x 16" x 7 1/2" | 35 1/2" x 21 1/2" | DWD-1-2816-7.5-15 R OR L | 28" x 16" x 7 1/2" | 44 1/2" x 21 1/2" | |
| DWD-1-1916-10-15 R OR L | 19" x 16" x 10" | 35 1/2" x 21 1/2" | DWD-1-2816-10-15 R OR L | 28" x 16" x 10" | 44 1/2" x 21 1/2" | |
| DWD-1-1916-4.5-20 R OR L | 19" x 16" x 4 1/2" | 40 1/2" x 21 1/2" | DWD-1-2816-4.5-20 R OR L | 28" x 16" x 4 1/2" | 49 1/2" x 21 1/2" | |
| DWD-1-1916-7.5-20 R OR L | 19" x 16" x 7 1/2" | 40 1/2" x 21 1/2" | DWD-1-2816-7.5-20 R OR L | 28" x 16" x 7 1/2" | 49 1/2" x 21 1/2" | |
| DWD-1-1916-10-20 R OR L | 19" x 16" x 10" | 40 1/2" x 21 1/2" | DWD-1-2816-10-20 R OR L | 28" x 16" x 10" | 49 1/2" x 21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainer 1 1/2" IPS
• Fully welded, seamless and polished to #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options

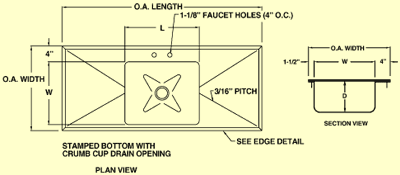

One Compartment Drop-in Sinks with Two Drainboards
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
|
19" x 16" x 4 1/2" |
51" x 21 1/2" |
22" x 16" x 10" |
54" x 21 1/2" |
|||
| DWDD-1-1916-7.5-16D | 19" x 16" x 7 1/2" | 51" x 21 1/2" | DWDD-1-2816-4.5-16D | 28" x 16" x 4 1/2" | 60" x 21 1/2" | |
| DWDD-1-1916-10-16D | 19" x 16" x 10" | 51" x 21 1/2" | DWDD-1-2816-7.5-16D | 28" x 16" x 7 1/2" | 60" x 21 1/2" | |
| DWDD-1-2216-4.5-16D | 22" x 16" x 4 1/2" | 54" x 21 1/2" | DWDD-1-2816-10-16D | 28" x 16" x 10" | 60" x 21 1/2" | |
| DWDD-1-2216-7.5-16D | 22" x 16" x 7 1/2" | 54" x 21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainer 1 1/2" IPS
• Fully welded, seamless and polished to #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options

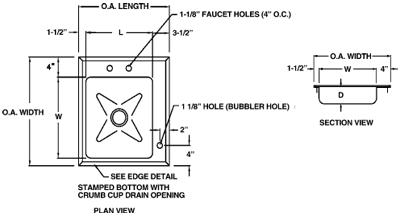

One Compartment Drop-in Sinks with Bubbler Hole
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
DB-1-1416-4.5-R, or L |
14"x16"x4 1/2" |
19"x21 1/2" |
| DB-1-1416-7.5-R, or L | 14"x16"x7 1/2" | 19"x21 1/2" |
| DB-1-1916-4.5-R, or L | 19"x16"x4 1/2" | 24"x21 1/2" |
| DB-1-1916-7.5-R, or L | 19"x16"x7 1/2" | 24"x21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainer 1 1/2" IPS
• Fully welded, seamless and polished to #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Bubbler drilling on right or left
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options

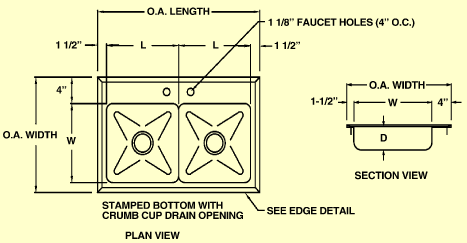

Two Compartment Drop-in Sinks with No Drainboards
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
|
12" x 12" x 4 1/2" |
27" x 17 1/2" | 14" x 16" x 4 1/2" |
31" x 21 1/2" | |||
| D-2-1212-7.5 | 12" x 12" x 7 1/2" | 27" x 17 1/2" | D-2-1416-7.5 | 14" x 16" x 7 1/2" | 31" x 21 1/2" | |
| D-2-1212-10 | 12" x 12" x 10" | 27" x 17 1/2" | D-2-1416-10 | 14" x 16" x 10" | 31" x 21 1/2" | |
| D-2-1216-4.5 | 12" x 16" x 4 1/2" | 27" x 21 1/2" | D-2-1916-4.5 | 19" x 16" x 4 1/2" | 41" x 21 1/2" | |
| D-2-1216-7.5 | 12" x 16" x 7 1/2" | 27" x 21 1/2" | D-2-1916-7.5 | 19" x 16" x 7 1/2" | 41" x 21 1/2" | |
| D-2-1216-10 | 12" x 16" x 10" | 27" x 21 1/2" | D-2-1916-10 | 19" x 16" x 10" | 41" x 21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainer 1 1/2" IPS
• Fully welded, seamless and polished to #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options
Two Compartment Drop-in Sinks with Two Drainboards
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
|
14" x 16" x 4 1/2" |
59" x 21 1/2" |
16" x 16" x 4 1/2" | 63" x 21 1/2" |
|||
| DWDD-2-1416-7.5-15.5 D | 14" x 16" x 7 1/2" | 59" x 21 1/2" | DWDD-2-1616-7.5-15.5 D | 16" x 16" x 7 1/2" | 63" x 21 1/2" | |
| DWDD-2-1416-10-15.5 D | 14" x 16" x 10" | 59" x 21 1/2" | DWDD-2-1616-10-15.5 D | 16" x 16" x 10" | 63" x 21 1/2" | |
| DWDD-2-1416-4.5-18.5 D | 14" x 16" x 4 1/2" | 65" x 21 1/2" | DWDD-2-1616-4.5-18.5 D | 16" x 16" x 4 1/2" | 69" x 21 1/2" | |
| DWDD-2-1416-7.5-18.5 D | 14" x 16" x 7 1/2" | 65" x 21 1/2" | DWDD-2-1616-7.5-18.5 D | 16" x 16" x 7 1/2" | 69" x 21 1/2" | |
| DWDD-2-1416-10-18.5 D | 14" x 16" x 10" | 65" x 21 1/2" | DWDD-2-1616-10-18.5 D | 16" x 16" x 10" | 69" x 21 1/2" | |
| DWDD-2-1416-4.5-24.5 D | 14" x 16" x 4 1/2" | 77" x 21 1/2" | DWDD-2-1616-4.5-24.5 D | 16" x 16" x 4 1/2" | 81" x 21 1/2" | |
| DWDD-2-1416-7.5-24.5 D | 14" x 16" x 7 1/2" | 77" x 21 1/2" | DWDD-2-1616-7.5-24.5 D | 16" x 16" x 7 1/2" | 81" x 21 1/2" | |
| DWDD-2-1416-10-24.5 D | 14" x 16" x 10" | 77" x 21 1/2" | DWDD-2-1616-10-24.5 D | 16" x 16" x 10" | 81" x 21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainer 1 1/2" IPS
• Fully welded, seamless and polished to #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options

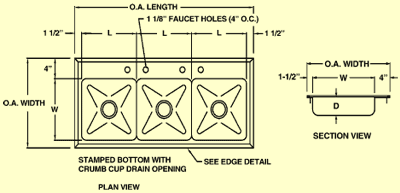

Three Compartment Drop-in Sinks with No Drainboards
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
|
12" x 12" x 4 1/2" |
39" x 17 1/2" |
14" x 16" x 4 1/2" |
45" x 21 1/2" |
|||
| D-3-1212-7.5 | 12" x 12" x 7 1/2" | 39" x 17I 1/2" | D-3-1416-7.5 | 14" x 16" x 7 1/2" | 45" x 21 1/2" | |
| D-3-1212-10 | 12" x 12" x 10" | 39" x 17 1/2" | D-3-1416-10 | 14" x 16" x 10" | 45" x 21 1/2" | |
| D-3-1216-4.5 | 12" x 16" x 4 1/2" | 39" x 21 1/2" | D-3-1916-4.5 | 19" x 16" x 4-1/2" | 60" x 21 1/2" | |
| D-3-1216-7.5 | 12" x 16" x 7 1/2" | 39" x 21 1/2" | D-3-1916-7.5 | 19" x 16" x 7 1/2" | 60" x 21 1/2" | |
| D-3-1216-10 | 12" x 16" x 10" | 39" x 21 1/2" | D-3-1916-10 | 19" x 16" x 10" | 60" x 21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainer 1 1/2" IPS
• Fully welded, seamless and polished to #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options

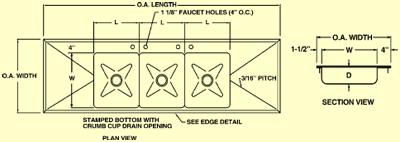

Three Compartment Drop-in Sinks with Two Drainboards
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
Model # |
Bowl Size L x W x D |
O.A. Dims L x W |
|
14" x 16" x 4 1/2" |
73" x 21 1/2" |
16" x 16" x 4 1/2" |
79" x 21 1/2" |
|||
| DWDD-3-1416-7.5-15.5 D | 14" x 16" x 7 1/2" | 73" x 21 1/2" | DWDD-3-1616-7.5-15.5 D | 16" x 16" x 7 1/2" | 79" x 21 1/2" | |
| DWDD-3-1416-10-15.5 D | 14" x 16" x 10" | 73" x 21 1/2" | DWDD-3-1616-10-15.5 D | 16" x 16" x 10" | 79" x 21 1/2" | |
| DWDD-3-1416-4.5-18.5 D | 14" x 16" x 4 1/2" | 79" x 21 1/2" | DWDD-3-1616-4.5-18.5 D | 16" x 16" x 4 1/2" | 85" x 21 1/2" | |
| DWDD-3-1416-7.5-18.5 D | 14" x 16" x 7 1/2" | 79" x 21 1/2" | DWDD-3-1616-7.5-18.5 D | 16" x 16" x 7 1/2" | 85" x 21 1/2" | |
| DWDD-3-1416-10-18.5 D | 14" x 16" x 10" | 79" x 21 1/2" | DWDD-3-1616-10-18.5 D | 16" x 16" x 10" | 85" x 21 1/2" | |
| DWDD-3-1416-4.5-24.5 D | 14" x 16" x 4 1/2" | 91" x 21 1/2" | DWDD-3-1616-4.5-24.5 D | 16" x 16" x 4 1/2" | 97" x 21 1/2" | |
| DWDD-3-1416-7.5-24.5 D | 14" x 16" x 7 1/2" | 91" x 21 1/2" | DWDD-3-1616-7.5-24.5 D | 16" x 16" x 7 1/2" | 97" x 21 1/2" | |
| DWDD-3-1416-10-24.5 D | 14" x 16" x 10" | 91" x 21 1/2" | DWDD-3-1616-10-24.5 D | 16" x 16" x 10" | 97" x 21 1/2" |
Mechanical Specifications
• 16 gauge 304 stainless steel fabrication
• 3 1/2" drain opening with crumb cup drain and basket strainer 1 1/2" IPS
• Fully welded, seamless and polished to #3 commercial finish
• Horizontal and vertical corners coved to a 3/4" radius
• Die formed depression to drain in bowl bottom
• 1 set of faucet holes 4" o.c.
• 1" x 1" stainless steel mounting bracket
• 1/4 – 20 studs @ 1 1/2" long welded to underside of sink edge
• Feathered edge around perimeter of sink bowl on all 4 sides
• NSF listed and labeled
Optional
• 14 gauge 304 stainless steel fabrication available
• Different bowl sizes and depths
• Additional faucet drillings
• Sound deadening to underside of sink bowl
• ADA options
